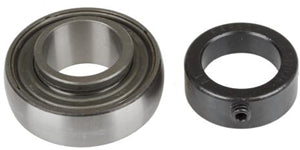

ROLAMENTO DE INSERÇÃO RELUBE 1-1/4" ID - ANEL INTERNO ESTREITO
Recursos do produto
Ball Bearing Insert
Narrow Inner Ring - Greasable Standard Agricultural Applications
GRA-RB Series
- Narrow Inner ring type with self-locking collar
- Same as RA..RRB Series except has provision for re-lubrication
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Especificações do produto
| Basic Outer Ring Size | 206 |
|---|---|
| Bearing I.D. | 1-1/4" |
| Bearing O.D. | 62mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Greasable |
| Inner Race | Narrow |
| Inner Ring Width | .938 Inch |
| Interchange Numbers | 1179922, 12987, 134686, 156011C91, 156011C92, 520144, 843332M1, A156011C92, ANPS103RR2C, GRA103NPPB2, JD9400, NPS103RR2C, SPA20L, XH4241, YET206-104 |
| Outer Race Shape | Spherical |
| Outer Ring Width | .709 Inch |
| Shaft Lock Type | Lock Collar |
