CORPO DE ACOPLADOR FLUSH FACE DE 1/2'' - ROSCA DE 1/2"-14
Product Features
FEM Series - Flush Face / Non-Spill

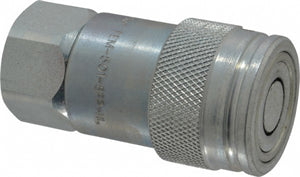

Skid Steer / Construction Coupler Body
FEM Series couplings meet or exceed ISO 16028 design and performance requirements. The flush valves eliminate spillage and air inclusion when connecting and disconnecting.
Coupler and nipple bodies have a modular design with increased flexibility for end port options.
- Flush, non-spill valving
- Global interchangeability with other ISO 16028 compliant couplings
- Hardened steel sleeves and nipple bodies
- Blow-out resistant seal
- Connect-under-pressure nipple option
- Protective zinc plating with clear trivalent chromate finish
Product Specifications
| Length | 2.96" |
|---|---|
| Wrench Flats | 1-1/4" |
| Largest Diameter | 1.54" |
| Dust Cap Series | CFE-502-PN / PFE501-PN |
| Coupler Body Size | 1/2" |
| Thread Size | 1/2 - 14 NPT |
| Max PSI | 3625 PSI |
| Rated Flow | 12 GPM |
| Connect Under Pressure | No |
| Sleeve Operation | Push to Connect |
| Package Type | VisiPack |
| Brand | Pioneer |
| Interchange Numbers | 4796-82296, 730-FEM5018FPNL, FEM-501-8FP-NL, FFE4954 |
