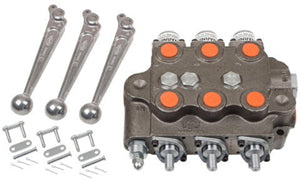

3 SPOOL HYDRAULIC VALVE, OPEN CENTER
Roll over image to zoom in
3 SPOOL HYDRAULIC VALVE, OPEN CENTER

3 SPOOL HYDRAULIC VALVE, OPEN CENTER

SKU: 196-145737
Brand: Cross
3 Spool (SBA222) Open Center Hydraulic Control Valve; 4-way, 3 position; Spring Centering; With End Ports; Adjustable relief pressure 1500-2500 PSI; Comes with Handle; For operating double-acting cylinders . BA3111AAAGEA0
Price:

Product Features

Features:

  • 2500 PSI Operating Pressure
  • 30 GPM Flow Rate
  • All Spools 4-Way 3-Position
  • Spring Centering
  • Adjustable Relief Set at 2000 PSI
  • End Ports
  • Power-Up / Power-Down
  • Handles Included

Product Specifications

BrandCross
HandleComes With Handles
Hydraulic SystemsOpen
Interchange Numbers 196-SBA222, 262-1203, ASBA222, BA3111AAAG3EAO, SBA-222, SBA222
Max Flow30 GPM
Number of Valve Spools3
Outlet LocationEnd Outlet
Port SizeInlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf
Power Beyond PortConversion Plug
Relief PortAdjustable 1500-2500 PSI (Set At 2000 PSI)
Spool 1 Action3 Position Spring Centered
Spool 1 Specification4 Way, 3 Position, Open Center
Spool 2 Action3 Position Spring Centered
Spool 2 Specification4 Way, 3 Position, Open Center
Spool 3 Action3 Position Spring Centered
Spool 3 Specification4 Way, 3 Position, Open Center
