3 SPOOL HYDRAULIC VALVE, OPEN CENTER WITH FLOAT
Roll over image to zoom in
3 SPOOL HYDRAULIC VALVE, OPEN CENTER WITH FLOAT

3 SPOOL HYDRAULIC VALVE, OPEN CENTER WITH FLOAT

SKU: 196-150340
Brand: Cross

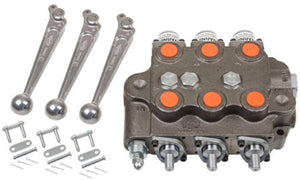

3 Spool (SBAF22) Open Center Hydraulic Control Valve; 4-way, 3 position, 1st Spool Has Detent In Float Position; Spring Centering; With End Ports; Adjustable relief pressure 1500-2500 PSI; Comes with Handle; For operating double-acting cylinders . 3/4 Npt. In.-1/2 Npt Work Ports. Can Sub For 150677 In Many Applications BA3A11XAAG3EA0
Price:
Stock:
Sold out
Min/Multiple:
1

Product Specifications

Number of Valve Spools3
Hydraulic SystemsOpen
Max Flow30 GPM
Spool 1 Specification4 Way, 4 Position, Open Center, Detent Float Position
Spool 1 Action4 Position, Spring Centering To Neutral, Float Position Detent
Spool 2 Specification4 Way, 3 Position, Open Center
Spool 2 Action3 Position Spring Centered
Spool 3 Specification4 Way, 3 Position, Open Center
Spool 3 Action3 Position Spring Centered
Relief PortAdjustable 1500-2500 PSI (Set At 2000 PSI)
Power Beyond PortConversion Plug
Outlet LocationEnd Outlet
Port SizeInlet And Outlet 3/4 Inch Nptf, Working Ports 1/2 Inch Nptf
HandleComes With Handles
BrandCross
Interchange Numbers ASBAF22, pricefy.io, SBAF2-2, SBAF22
