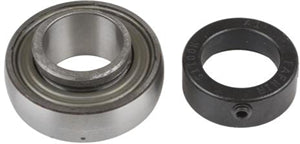

RELUBE INSERT BEARING 1" ID - NARROW INNER RING
Product Features
Ball Bearing Insert
Narrow Inner Ring - Greasable Standard Agricultural Applications
GRA-RB Series
- Narrow Inner ring type with self-locking collar
- Same as RA..RRB Series except has provision for re-lubrication
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Basic Outer Ring Size | 205 |
|---|---|
| Bearing I.D. | 1" |
| Bearing O.D. | 52mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Greasable |
| Inner Race | Narrow |
| Inner Ring Width | .844 Inch |
| Interchange Numbers | 121038, 42903, 482303R91, 482303R92, 506550E, 565094, B15-2100D, B152100D, GRA100NPPB, JD9335, NPS100RRC, SPA16, TP-JD9335, TPJD9335 |
| Outer Race Shape | Spherical |
| Outer Ring Width | .591 Inch |
| Shaft Lock Type | Lock Collar |
