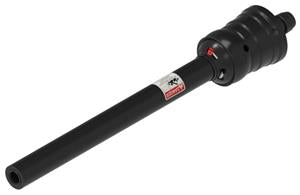

CV TRACTOR TUBE HALF SHAFT FOR JOHN DEERE BALER - CV CAT 4 SERIES 35 - 1-3/4 20 SPLINE TRACTOR YOKE - REPLACES JD AH207724
Roll over image to zoom in
CV TRACTOR TUBE HALF SHAFT FOR JOHN DEERE BALER - CV CAT 4 SERIES 35 - 1-3/4 20 SPLINE TRACTOR YOKE - REPLACES JD AH207724

CV TRACTOR TUBE HALF SHAFT FOR JOHN DEERE BALER - CV CAT 4 SERIES 35 - 1-3/4 20 SPLINE TRACTOR YOKE - REPLACES JD AH207724

SKU: 971-9214758659
The Complete PTO Shaft is 971-14758659  (BE32669, BE32272)The Implement Half Shaft is 971-9314758659
Price:
Stock:
Sold out
Min/Multiple:
1

NOTIFY ME WHEN AVAILABLE

Product Specifications

BrandWeasler
Compressed Overall Length47.25 Inches
Cross & Bearing Cap Diameter1-3/16 Inch / 30.22mm
Cross & Bearing Overall Length4-3/16 Inch / 106.50mm
CV CategoryCat 4
Driveshaft ApplicationJohn Deere Baler
Implement Yoke Part Number111-8620
North American PTO Series35
PTO Product CategoryDriveshaft
PTO Product Sub CategoryCV Half Shaft
PTO Tubing ShapeSplined Shaft
Splined Shafting Size1-5/16 20 Spline
Tractor Yoke Lock TypeAuto-Lok
Tractor Yoke Size1-3/4" 20 Spline
Interchange Numbers AFH207724

Product Applications

MakeTypeModel
John DeereHay Baler447, 457, 468, 468S, 469, 547, 557, 568, 569
