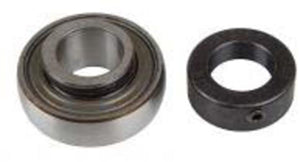

SEALED INSERT BEARING 7/8" ID - NARROW INNER RING
Product Features
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Product Specifications
| Bearing I.D. | 7/8" |
|---|---|
| Bearing Type | Insert Bearing |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Outer Race Shape | Spherical |
| Shaft Lock Type | Lock Collar |
| Bearing O.D. | 52mm |
| Bore Shape | Round |
| Basic Outer Ring Size | 205 |
| Inner Ring Width | .844 Inch |
| Outer Ring Width | .591 Inch |
| Brand | Timken |
| Interchange Numbers | 10181, 1113372, 1308770, 147082, 15A3918A, 260369, 3102, 41448, 50286, 520145, 564991R91, 564991R92, 5923, 71308770, 834197M1, 834197M91, 895963L, 9-90019, A564991R1, AC10839, AM3102, F90306, FH205-14, JD8562, NPS014RPC, pricefy.io, RA014NPPB, TP-JD8562, TPJD8562, Z389A |
