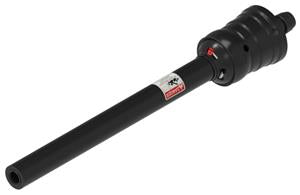

CV TRACTOR TUBE HALF SHAFT FOR JOHN DEERE BALER - CV CAT 4 SERIES 35 - 1-3/8 6 SPLINE TRACTOR YOKE REPLACES AFH207722
%20The%20Implement%20Half%20Shaft%20is...)
Product Fitment
| Make | Type | Model |
|---|---|---|
| John Deere | Hay Baler | 440E, 447, 448, 449, 450M, 457, 458, 458S, 459, 459SS, 460M, 460R, 467, 468, 468S, 469, 469SS, 547, 550M, 557, 558, 559, 559SS, 560M, 560R, 561M, 567, 568, 569, 569SS |
Product Features
Category 4 CV Female Tube Front Half Shaft
Fits John Deere Round Baler
Tractor Half Shaft with Tube and SlipSleeve Construction. Slip Sleeve Accepts 1-5/16" x 20 spline male shaft.
Fits Models 449, 459, 469, 469 Premium Silage Special, 559, 559 Premium Silage Special, 569, 569 Premium Silage Special *Models 449, 458, 468, 557, 558 were orignially equipped to handle the larger 1-11/16 spline or the smaller 1-5/16 spline. Please verify correct spline configuration.
Constant velocity (CV) wide angle universal joint assemblies allow for smooth machine operation through a broad range of motion. The universal joints included allow the machine to be designed with the input shaft in the best operating position and yet allow the operator to maneuver as needed. The CV delivers constant power by self-canceling torque and speed fluctuations typically found in single cardan-type universal joints.
Easy Lock Guard System: Provides full coverage at maximum angles, Full 360° friction weld on guard bell, Black coloring that is durable against ultraviolet light and ozone, Cold weather impact rated to -35°C, Meets and exceeds all applicable safety standards, Quick and easy process for removal and installation
Product Specifications
| Brand | Weasler |
|---|---|
| Compressed Overall Length | 41.75 Inches |
| Cross & Bearing Cap Diameter | 1-3/16 Inch / 30.22mm |
| Cross & Bearing Overall Length | 4-3/16 Inch / 106.50mm |
| CV Category | Cat 4 |
| Driveshaft Application | John Deere Baler |
| Implement Yoke Part Number | 111-8606 |
| Interchange Numbers | AE74690, AFH207722 |
| North American PTO Series | 35 |
| PTO Product Category | Driveshaft |
| PTO Product Sub Category | CV Half Shaft |
| PTO Tubing Shape | Splined Shaft |
| Splined Shafting Size | 1-5/16 20 Spline |
| Tractor Yoke Lock Type | Auto-Lok |
| Tractor Yoke Size | 1-3/8" 6 Spline |
